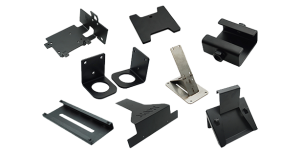

Whether you are designing industrial equipment, automation systems, medical devices, or electronic cabinets, metal brackets are the structural pillars that bear everything.

Customizing a suitable support structure is never an easy task.

• The standard specifications often fail to match your exact dimensions.
• The complex geometries and strict tolerances make it difficult for most suppliers to handle.
• Deliveries are frequently delayed, and batch quality is unstable.
• The after-sales issues do not receive clear and traceable responses.

We have been continuously solving such problems for our customers for over 26 years. We not only provide products, but also offer a complete set of guarantees from material selection to delivery.

Next, we will break down the solutions for you step by step, covering application scenarios, material selection logic, real cases, and core processes.

Application Scenario

A high-quality bracket is far more than a simple structural component; it is the cornerstone of your entire system’s performance. Our custom fabrication capabilities serve a wide range of industries and application scenarios as follows:

🔹Industrial equipment and machinery – Equipment base, frame base, protective structure, and sub-frame
🔹Robots and automation – Robot base, column, fixture frame, and support structure
🔹Medical equipment – Imaging diagnostic equipment, surgical instruments, patient trolley and frame of hospital furniture
🔹Electronics and communication – Cabinet frame, sub-cabinet component and equipment rack
🔹HVAC and electrical – Support frame, cable tray and control cabinet

Selection Guidelines

The appropriate materials are the key factor determining the lifespan and performance of your metal brackets. We offer a wide range of material options and assist customers in making the best decision:

If you are unsure, please click the button below to contact us. Our team of over 20 engineers will provide you with the most useful advice within 24 hours.

📤 Contact Us

Materials	Applicable scenarios	Core features
Carbon steel	General structural framework	High cost-effectiveness, good strength, strong weldability
High-strength steel	Overloaded application	Higher stiffness, greater load-bearing capacity
Stainless steel	Medical, food, corrosive environment	Corrosion-resistant, easy to clean, durable
Aluminum alloy	Lightweighting requirements	Significant weight reduction effect, good processability

Three Real Project Cases

Case 1: Red metal brackets (customized stainless steel OEM part)

Suitable for fixing and clamping various equipment shells and locomotive accessories. The main body is made of 304 stainless steel (thickness 1- 3 mm), formed through laser cutting, stamping, bending, and hollowing out. The surface is treated with red powder spraying/oven baking for rust prevention.

The board surface is reserved with multiple round holes, square holes, and long slots, facilitating screw installation and fine position adjustment; it comes with M-sized markings to distinguish specifications, and both ends have curved hooks for quick locking.

The overall size and curvature are fully customized according to the customer’s drawings.

We have optimized the bending rebound compensation parameters and the gap between the clamps. We strictly control the coating adhesion and salt spray performance, and verify the installation accuracy and locking force through free samples.

Result:

• The locking force of the snap fastener is stable within the set value ±5%, and the installation position deviation is ≤ 0.2mm.
• The neutral salt spray test lasts≥ 240 hours without rusting.
• The delivery cycle is shortened by 2 weeks, and the unit’s overall cost is reduced by 10%.

Case 2: Black sheet metal housing bracket (electromechanical packaging housing)

Suitable for the packaging and installation protection of small electromechanical components. The main body is cold-rolled steel (thickness 1.2- 2.5 mm), formed through laser cutting, precise bending, and welding assembly. The surface is treated with black electrostatic spraying/painting, providing rust prevention and wear resistance.

We optimized the bending sequence and welding positioning fixtures, strengthened the root of the support ears, and adjusted the coating curing curve to enhance impact resistance. We verified the assembly fit through sample testing.

Result:

• The bending angle error is ≤ 0.5°, and the assembly fit degree is improved by 30%.
• The impact resistance test shows no deformation and no coating peeling.
• The delivery cycle is shortened, and the single-piece manufacturing cost is reduced by 8%.

Case 3: Installation Adjustment Bracket (Adjustable Positioning Clamping Component)

Suitable for working conditions requiring precise adjustment of installation position and clamping fixation. The main body is a cold-rolled steel plate, treated with overall blue-white galvanization for rust prevention and corrosion resistance; carbon steel hexagon screws accompany it.

The base is bent to form a clamping frame, equipped with two long rectangular holes, enabling large-scale displacement in front, back, left, and right directions; the double-bolt locking structure secures the fixed component; the four-sided bent flanges serve as limiters to prevent loosening.

We optimized the hole length and bolt pre-tightening force, added anti-slip patterns on the contact surface, and conducted sample tests to improve adjustment flexibility and locking stability.

Results:

• The adjustment range is ±30mm, and after locking, the anti-vibration test shows no slippage;
• The salt spray test lasts for ≥72 hours without rust;
• The cost of a single set is reduced by 15%, and the supply cycle is shortened by 1 week compared to the conventional method.

Why Choose Us

🔹26-year expertise: 3,000+ clients in 100+ countries, 70,000+ customized parts

🔹ISO 9001:2015 certified: full-process quality control from raw materials to shipment

🔹One-stop fabrication: sheet metal(covering metal cutting, bending, welding, stamping, deep stamping), casting, CNC machining, surface treatment [View equipment list]

🔹19 senior engineers (20+ years avg. exp.): free design optimization for drawings, materials & processes

🔹Full-cycle service: pre-sales consulting, production tracking, post-sales support

🔹Free sampling: pre-production verification to lower procurement risk

🔹Dedicated sample & low-volume lines: seamless prototype-to-mass production
